General

Brand

Hikvision

---

Model

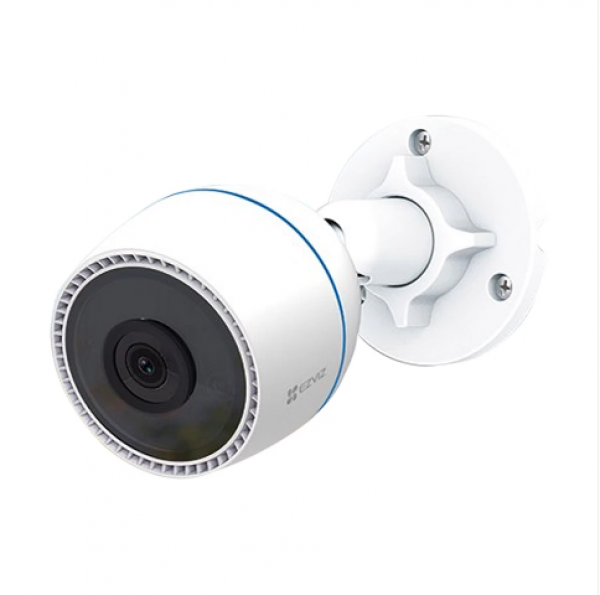

Hikvision Ezviz CS-H3c

---

Usage

Outdoor

---

Type

Wi-Fi Bullet IP Camera

---

Part No

CS-H3c-R100-1K2WF

---

Camera

Camera Type

Fixed

---

Mega Pixels

2.0MP

---

Max. Camera Resolution

1920 x 1080

---

Image Sensor

1/2.7 Inch CMOS

---

Resolution

1080p, 1920 x 1080

---

Shutter Speed

Self-adaptive shutter

---

Day & Night

IR-Cut filter with auto-switching

---

Night Vision

Yes

---

Lens

Lens

F2.0

---

Lens Mount

M12

---

Focal Length

2.8mm

---

Viewing Angle.

82 Degree (Horizontal), 98 Degree (Diagonal)

---


General Function

Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

---

Dual-Stream

Yes

---

Frame Rate

Max: 30fps, Self-Adaptive during network transmission

---

Digital Noise Reduction (DNR)

3D DNR

---

Wide Dynamic Range (WDR)

Digital WDR

---

Anti-Flicker

Yes

---

Network & Connectivity

Interface(s)

RJ45 x 1 (10M / 100M Adaptive Ethernet Port)

---

Wi-Fi

Yes

---

Wi-Fi Details

IEEE802.11b, 802.11g, 802.11n

---

Wi-Fi Pairing

AP Pairing

---

Security

Security

64/ 128-bit WEP, WPA/ WPA2, WPA-PSK/ WPA2-PSK

---

Password Protection

Yes

---

Watermark

Yes

---

Motion Detection

Yes

---

Human Detection

Yes

---

Water Protection

Yes

---

Technical Info

Scanning System

Progressive

---

Video Type

H.265/ H.264

---

Mic & Speaker

Only Mic

---

Frequency

2.4GHz - 2.4835GHz

---

Ingress Protection Grade

IP67

---

Working Distance

Unmentioned

---

Protocols

EZVIZ Cloud Proprietary Protocol

---

Physical Description

Form-Factor

Bullet

---

Card Slot

Yes

---

Storage Type

MicroSD

---

Storage Supported

512GB

---

Color

White

---

Dimensions

157 x 72 x 72mm

---

Weight (gm)

250 gm

---

Relevant Accessories (Not Included)

In the box: H3c Camera, Drill Template, Screw Kit, Waterproof Kit, Power Adapter, Regulatory Information, Quick Start Guide.

---

Power

Power Supply

DC 12V/ 1A

---

Power Consumption

6W (Max.)

---

Operating Temperature

-30 Degree C - 50 Degree C

---

Operating Humidity

95% or less (non-condensing)

---

Warranty

Warranty Details

1 year

---

Additional Info

Others

Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR, IR Night Vision Distance: Up to 98 ft / 30 m, Video Bit Rate: Full HD; HD; Standard. Adaptive bit rate., Audio Bit Rate: Self-Adaptive, Max. Bitrate: 2 Mbps, Channel Bandwidth: Supports 20 MHz, Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps.

---

Specialty

Works with Alexa, Google Assistant, IFTTT. Supports EZVIZ CloudPlay storage (Subscription required). Certifications: CE/ FCC/ UKCA/ UL/ WEEE/ RoHS/ REACH. Audio Pick-Up. AI algorithm for alerts that matter. Crisp 1080p video with extended night vision. Elegant design with reliable Wi-Fi connection.

---

Country Of Origin

China

---

Made in/ Assemble

China
