General

Brand

Hikvision

---

Model

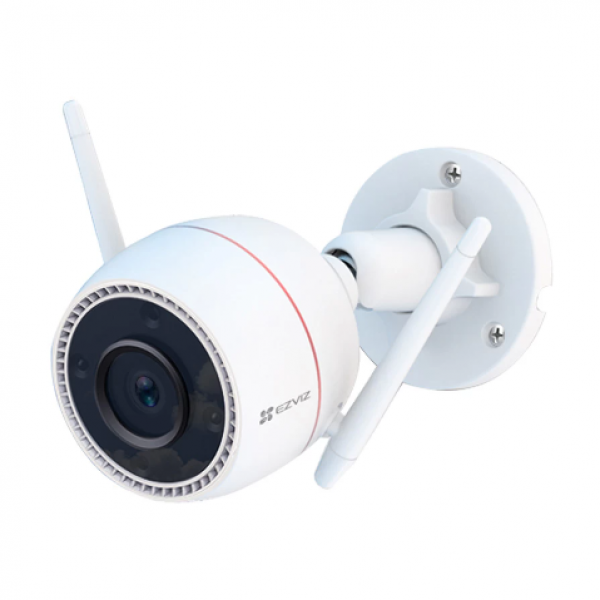

Hikvision EZVIZ OutPro CS-C3TN

---

Usage

Outdoor

---

Type

IP Camera

---

Camera

Camera Type

Fixed

---

Mega Pixels

3.0MP

---

Max. Camera Resolution

2304 x 1296

---

Image Sensor

1/2.7 Inch Progressive Scan CMOS

---

Resolution

2304 x 1296

---

Shutter Speed

Self-adaptive shutter

---

Day & Night

Yes

---

Night Vision

Yes

---

Lens

Lens

2.8mm

---

Lens Mount

M12

---

Viewing Angle.

Unmentioned

---


General Function

Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

---

Dual-Stream

Yes

---

Frame Rate

Max: 30fps, Self-Adaptive during network transmission

---

Digital Noise Reduction (DNR)

3D DNR

---

Wide Dynamic Range (WDR)

Digital WDR

---

Anti-Flicker

Yes

---

Network & Connectivity

Interface(s)

1 x RJ45 (10M/100M Adaptive Ethernet Port)

---

Wi-Fi

Yes

---

Wi-Fi Details

IEEE802.11b, 802.11g, 802.11n

---

Wi-Fi Pairing

AP Pairing

---

Security

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

---

Password Protection

Yes

---

Watermark

Yes

---

Human Detection

Yes

---

Water Protection

Yes

---

Weather Proof

Yes

---

Simultaneous Live View

Yes

---

Technical Info

Video Type

H.265, H.264

---

Mic & Speaker

Both Mic and Speaker

---

Audio Communication

Yes

---

Frequency

2.4GHz - 2.4835GHz

---

Ingress Protection Grade

IP67

---

Working Distance

30 Meter

---

Protocols

EZVIZ Cloud Proprietary Protocol

---

Supported Operating System

Android

---

Physical Description

Form-Factor

Bullet

---

Card Slot

Yes

---

Storage Type

MicroSD

---

Storage Supported

256GB (Max)

---

Color

White

---

Dimensions

72 x 84 x 152mm

---

Weight (gm)

253 gm

---

Relevant Accessories (Not Included)

EZVZ OutPro Camera, Drill Template, Screw Kit, Waterproof Kit, Power Adapter, Regulatory Information, Quick Start Guide.

---

Power

Power Supply

DC 12V/1A

---

Power Consumption

Max. 6W

---

Operating Temperature

-20 to 50 Degree C

---

Operating Humidity

95% or less ( non-condensing)

---

Warranty

Warranty Details

1 Year (Without Adapter)

---

Additional Info

Night Vision Mode

Color

---

Others

Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR, F2.0, view angle: 109 Degree (Horizontal), 126 Degree (Diagonal), Video Bit Rate: Quad HD, Full HD, HD, Standard. Adaptive bit rate. Interface Protocol: EZVIZ Cloud Proprietary Protocol. Max. Bitrate: 2M, Channel Bandwidth: Supports 20MHz, Transmission Rate: 11b: 11Mbps,11g: 54Mbps,11n: 144Mbps, Night Vision Distance: Max. 30 m (98 ft)

---

Specialty

Certifications: CE/ FCC/ UL/ RoHS/ WEEE, Color Night Vision, AI-Powered Human Shape Detection, Active Defense with Light and Siren, Two-Way Talk, The EZVIZ OutPro is designed to deliver round-the-clock home protection with multiple advanced camera technologies, such as ultra-sharp 2K video quality, AI-powered human shape detection, color night vision and more. Compact in size and durable in any weather, the EZVIZ OutPro is the go-to option for any family who seeks 24/7 peace-of-mind. The EZVIZ OutPro features the active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights for on-site deterrence.

---

Country Of Origin

China

---

Made in/ Assemble

China
